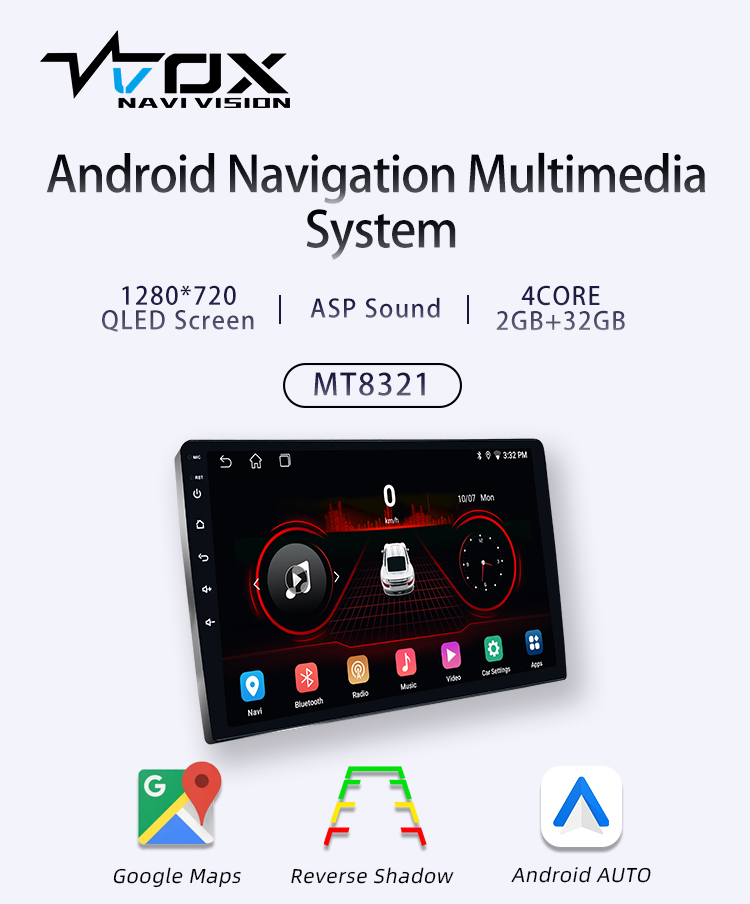

MT8321

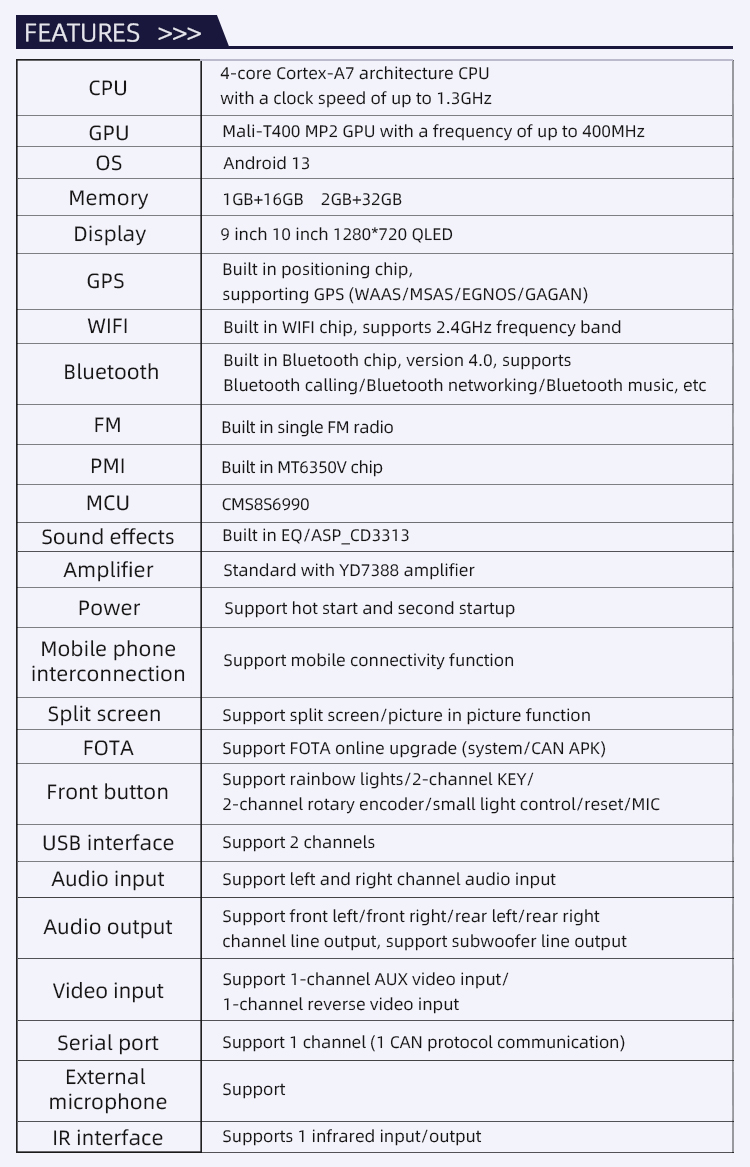

FEATURES >>>

CPU: 4-core Cortex-A7 architecture CPU with a clock speed of up to 1.3GHz

GPU: Mali-T400 MP2 GPU with a frequency of up to 400MHz

Memory: 1GB+16GB    2GB+32GB

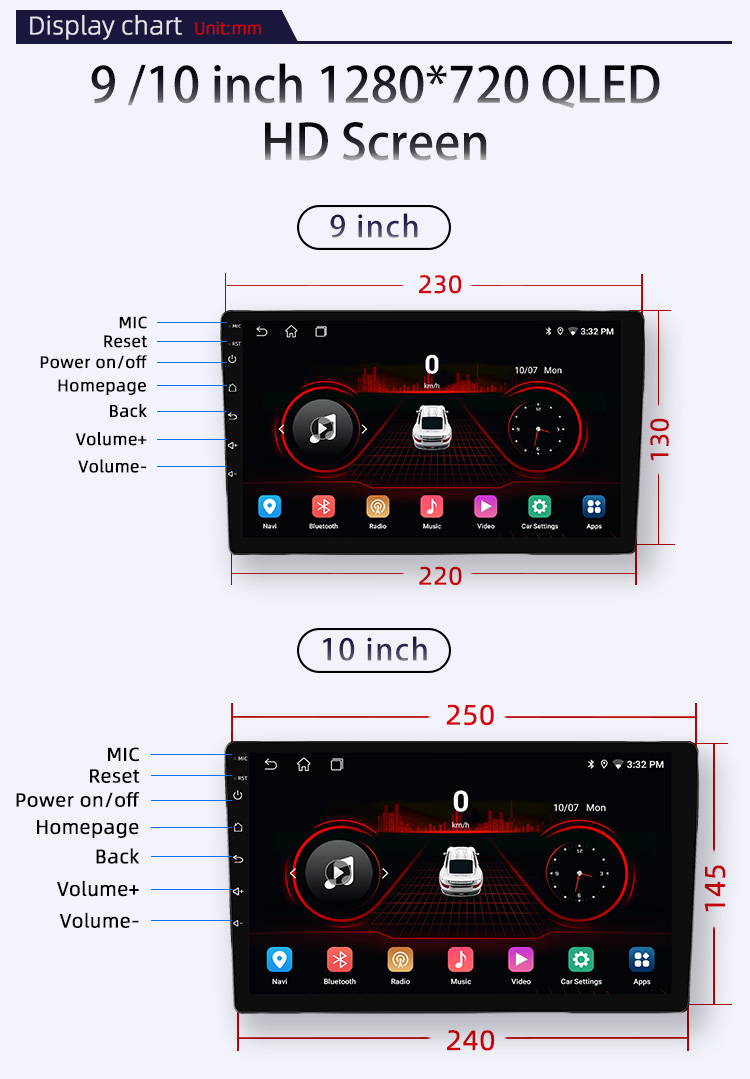

Display: 9 inch  10 inch  1280*720 QLED

GPS: Built in positioning chip, supporting GPS (WAAS/MSAS/EGNOS/GAGAN)

WIFI: Built in WIFI chip, supports 2.4GHz frequency band

OS: Android 13

Bluetooth: Built in Bluetooth chip, version 4.0, supports Bluetooth calling/Bluetooth networking/Bluetooth music, etc

FM: Built in single FM radio

PMI: Built in MT6350V chip

MCU: CMS8S6990

Sound effects: Built-in EQ/ASP_CD3313

Power: Support hot start and second startup

Amplifier: Standard with YD7388 amplifier

Mobile phone interconnection: Support mobile connectivity function

Split screen: Support split screen/picture in picture function

FOTA: Support FOTA online upgrade (system/CAN APK)

Front button: Support rainbow lights/2-channel KEY/2-channel rotary encoder/small light control/reset/MIC

USB interface: Support 2 channels

Audio input: Support left and right channel audio input

Audio output: Support front left/front right/rear left/rear right channel line output, support subwoofer line output

Video input: Support 1-channel AUX video input/1-channel reverse video input

Serial port: Supports 2 channels (1 CAN protocol communication, 1 external device communication)

External microphone: Support

IR interface: Supports 1 infrared input/output
